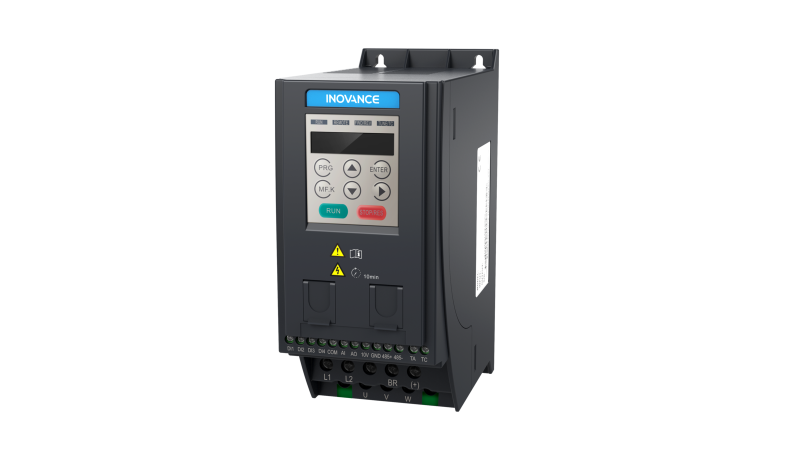

INOVANCE (MD 200)

The MD200 series represents the ideal solution for cost-effective motor control applications requiring reliable performance in a compact form factor. Designed for general purpose use, these drives offer exceptional value without compromising on essential features.

Technical Specifications

Power Ratings

1. Single Phase: 220 VAC, 0.4-2.2 kW
2. Three Phase: 400 VAC, 0.4-3.7 kW

Control Features

1. Dual Control Modes: Open loop V/F control & sensorless vector control
2. High Starting Torque: 150% starting torque at 3 Hz
3. Advanced Control: Automatic torque boost and slip compensation
4. Flexible Acceleration: 2-independent S-Ramps for smooth operation
5. High Frequency: Output frequency up to 500 Hz

Communication Options

1. Standard: Modbus RTU protocol
2. Optional: CANlink communication variant

Input/Output Configuration

1. Flexible I/O: Programmable digital and analog s/outputs
2. Easy Integration: Simplified parameter setup for quick commissioning

Safety & Protection

1. Braking System: Built-in dynamic braking unit
2. Motor Protection: Variable DC-injection braking
3. System Diagnostics: Comprehensive trip diagnostics
4. Compliance: CE and UL certifications

Key Benefits

💰 Cost-Effective Performance

1. Economic Design: Optimal price-to-performance ratio
2. Reduced Installation: Compact size saves panel space
3. Low Maintenance: Reliable operation minimizes downtime

⚡ Advanced Motor Control

1. Sensorless Vector Technology: Precise speed control without feedback devices
2. Torque Optimization: Automatic boost for demanding applications
3. Speed Accuracy: Slip compensation maintains consistent performance

🔧 Easy Implementation

1. Quick Setup: Simplified parameters reduce commissioning time
2. Flexible Programming: Customizable I/O for various applications
3. User-Friendly: Intuitive interface for easy operation

🔌 Connectivity Options

1. Industry Standard Protocols: Modbus RTU for PLC integration
2. CANlink Capability: Optional fieldbus connectivity
3. Network Ready: Seamless system integration

Special Variant: MD200-NC

Unique Feature

The MD200-NC variant offers selectable digital s with both sink (NPN) and source (PNP) configurations, providing maximum flexibility for different control system architectures.

Applications

1. General Machinery: Pumps, fans, conveyors
2. Material Handling: Basic positioning systems
3. Industrial Automation: Simple process control
4. OEM Equipment: Cost-sensitive applications

Why Choose MD200 Series?

🏭 Proven Reliability

1. Industrial-grade components
2. Robust construction for harsh environments
3. Long service life with minimal maintenance

💡 Smart Features

1. Comprehensive protection systems
2. Advanced diagnostics for quick troubleshooting
3. Flexible configuration for various applications

🌍 Global Compliance

1. CE marked for European markets
2. UL certified for North American applications
3. International safety standards compliance

Target Applications

1. HVAC systems (pumps and fans)
2. Conveyor systems
3. Basic material handling
4. Packaging machinery
5. Food processing equipment
6. Simple automation processes

Technical Support

Our engineering team provides comprehensive support for MD200 series installation, configuration, and troubleshooting to ensure optimal performance in your specific application.
