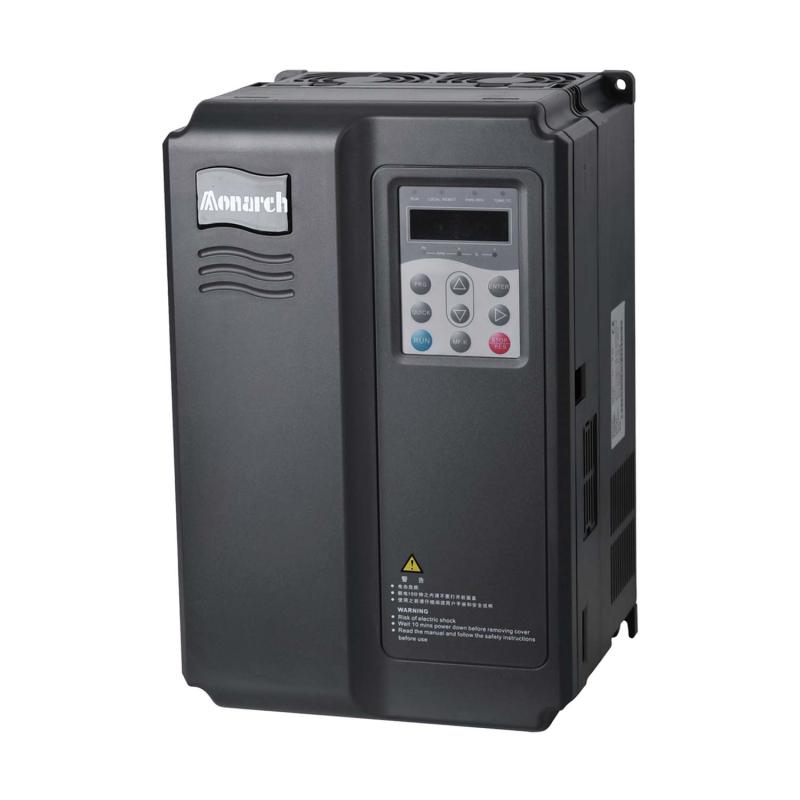

INOVANCE (MD 380)

The Inovance MD380 is a series of high-performance alternating current (AC) drives, also known as variable frequency drives (VFDs). It is designed for general-purpose use and functions by employing current vector control to regulate the speed and torque of electric motors.

Key features of the MD380 series include:

1. Motor control: Capable of controlling both AC asynchronous motors and permanent magnet synchronous motors (PMSMs).
2. Vector control: Supports multiple control modes, including sensorless flux vector control (SFVC) and closed-loop vector control (CLVC), which offer excellent low-speed stability and enhanced torque control.
3. Wide voltage range: Available in various voltage classes, including 220 V (single- and three-phase) and 380 V (three-phase), with options extending up to 1,140 V.
4. Programmable functions: The optional MD38PC1 programmable card allows users to write programs in ladder diagram format.
5. Multiple protocols: Supports common communication protocols like Modbus-RTU, PROFIBUS-DP, and CANopen.
6. Advanced software: Comes with background monitoring software that enables parameter upload, download, and real-time oscilloscopes.
7. Enhanced functionality: Built-in features include rapid current limiting, multi-motor switchover, and power dip ride-through functionality.

Common applications

The MD380 series is used for controlling a wide variety of industrial automation equipment. Typical applications include:

1. Textile machinery
2. Paper-making equipment
3. Wiredrawing machines
4. Machine tools
5. Packing and food processing
6. Pumps and fans

Technical specifications

While specifications can vary by model, common features across the series include:

1. Display: LED display for operational status.
2. IP rating: Standard IP20 (protection against solid objects) or IP21 rating (protection against dripping water).
3. Storage temperature: -20°C to +60°C.
4. Carrier frequency: 0.5 to 16 kHz.

Documentation and user support

User manuals and guides are readily available online and provide detailed instructions for:

1. Selection
2. Parameter setting
3. Commissioning
4. Maintenance and inspection
5. Troubleshooting (e.g., how to reset to factory defaults)
