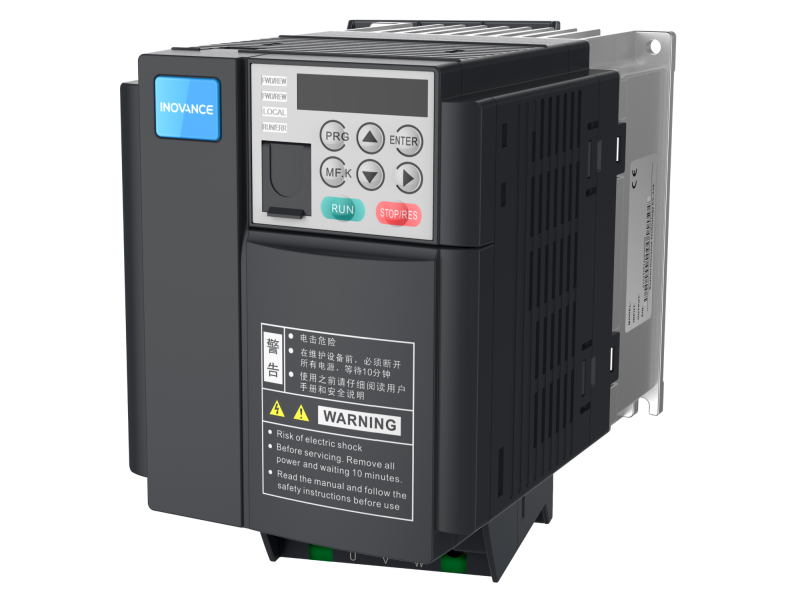

INOVANCE (MD 310)

The Inovance MD310 is a series of compact, general-purpose AC variable frequency drives (VFDs) used for motor control in various industrial automation applications. They are designed for open-loop V/f (voltage/frequency) and sensorless vector control.

Key Features and Specifications

1. Control Modes: Supports open-loop V/f and sensorless vector control (SVC).
2. Starting Torque: Provides 150% starting torque at 0.5 Hz in SVC mode.
3. Output Frequency: Capable of output frequencies up to 500 Hz.
4. Communication: Includes built-in Modbus RTU communication, with an optional CANlink interface available.
5. Braking: Features a built-in dynamic braking unit.
6. I/O: Offers flexible programmable s/outputs.
7. Voltage and Power: Available in three-phase voltage classes (380-440 VAC) with power ratings ranging from 0.4 kW to 18.5 kW.
8. Diagnostics: Includes comprehensive trip diagnostics for troubleshooting.
9. Applications: Widely used in industries such as textile processing, printing and packaging, and metal processing.
