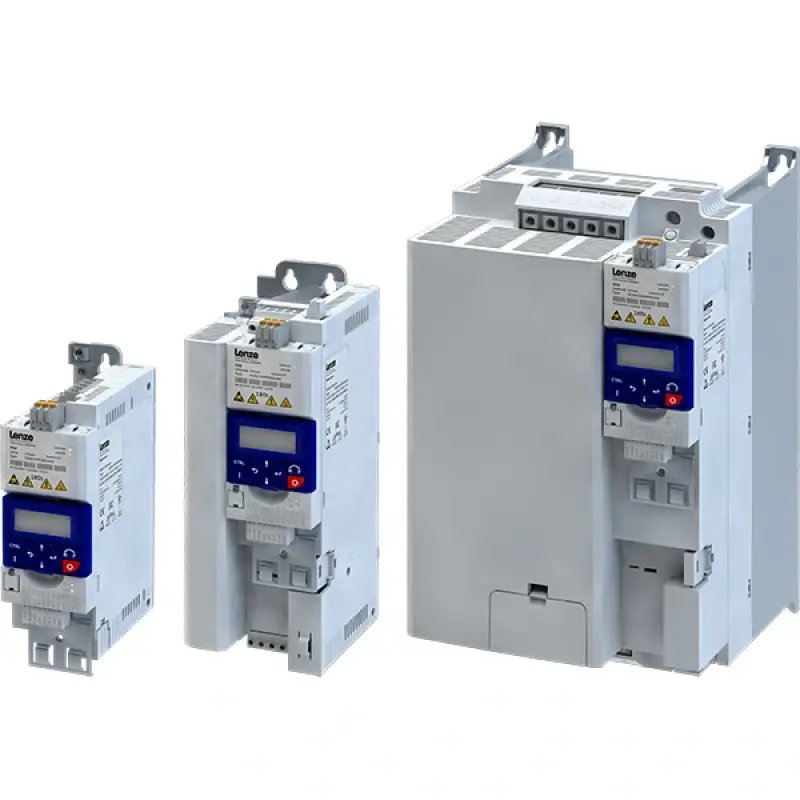

i550 cabinet frequency inverter

The i550 cabinet frequency inverter is your high-performance, compact solution for sophisticated motor control. Engineered for versatility and reliability, this inverter simplifies complex applications from conveyor systems and hoists to pumps and fans. Its space-saving design and rapid commissioning set new standards for efficiency in industrial automation, all while complying with the latest Ecodesign Directive for energy efficiency.

Key Features & Benefits

1. Ultra-Compact Design: Save valuable control panel space with a slim form factor—only 60 mm wide (up to 4 kW) and allowing for zero-clearance mounting.
2. Rapid Commissioning & Diagnostics: Leverage innovative WLAN connectivity for record-breaking setup times and convenient, remote diagnostics, reducing downtime.
3. Integrated Functional Safety: Available with "Safe Torque Off (STO)" certified for SIL 3 and PL e, ensuring the highest safety standards for your personnel and machinery.
4. Modular & Flexible Configuration: Purchase as a complete unit or as individual components (Power Unit, Control Unit, Safety Unit) for maximum application flexibility and easy maintenance.
5. Multi-Protocol Communication: Seamlessly integrates into any automation environment with support for PROFINET, EtherCAT, EtherNet/IP, Modbus TCP, PROFIBUS, CANopen, and IO-Link.

Detailed Technical Specifications

Power Range:

1. 0.25 kW to 132 kW

Supply Voltage Connections:

1. 1 AC 120 V | 1 AC 230 V | 3 AC 230 V | 3 AC 400 V | 3 AC 480 V

Control & I/O Connections:

1. Digital: 5x Digital Input, 1x Digital Output
2. Analog: 2x Analog Input, 1x Analog Output
3. Relay: 1x NO/NC Relay
4. Other: DC Bus Connection, Motor Temperature Monitoring

Industrial Communication Protocols:

1. Fieldbus: PROFIBUS, PROFINET, EtherCAT, EtherNet/IP, POWERLINK, CANopen
2. Serial & IoT: Modbus RTU, Modbus TCP, IO-Link

Standards & Compliance:

1. Ecodesign Directive (EN IEC 61800-9-2)
2. Functional Safety: EN IEC 62061 / EN IEC 61508 (SIL 3), EN ISO 13849-1 (PL e)
3. Market Approvals: CE, UKCA, UL (USA), KC (Korea), CCC (China)

Primary Application Areas

The i550 cabinet drive is engineered for a wide array of industrial applications, including:

1. Material Handling: Conveyor Drives, Traveling Drives, Hoist Drives
2. Machinery: Extruders, Packaging Machines
3. Fluid Handling: Pumps and Fans

For optimized performance, explore our application-specific solutions: i500 Pump Solutions, i500 Fan Solutions, i500 Conveyor Solutions, and i500 Winder Solutions.

Find Your Model: Using the Material Number

To get precise information, specifications, and documentation for your specific i550 cabinet inverter, please enter the Material Number in the search field above. You can typically find this number on the device's rating plate or in your ordering documentation.

Product Life Cycle Information

Status: Active

This product range is actively supported and recommended for both new installations and modernizing existing systems. Product life cycle may vary by region; please contact us for long-term availability planning.

Support & Documentation Resources

1. Project Planning: Technical data for system integration.
2. Commissioning & Operation: Quick Start Guides and Full Operating Instructions.
3. Manual: Functional Safety Manuals.
4. Brochures: Overview Flyers and detailed Frequency Inverter Brochures.
5. Certificates: View all market approvals and ISO certificates (ISO 9001, 14001, etc.).
